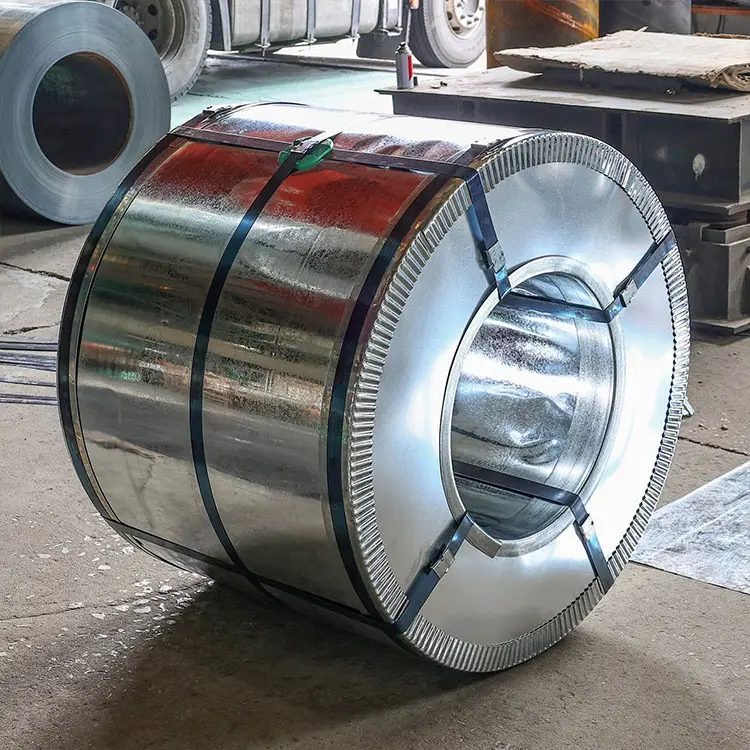

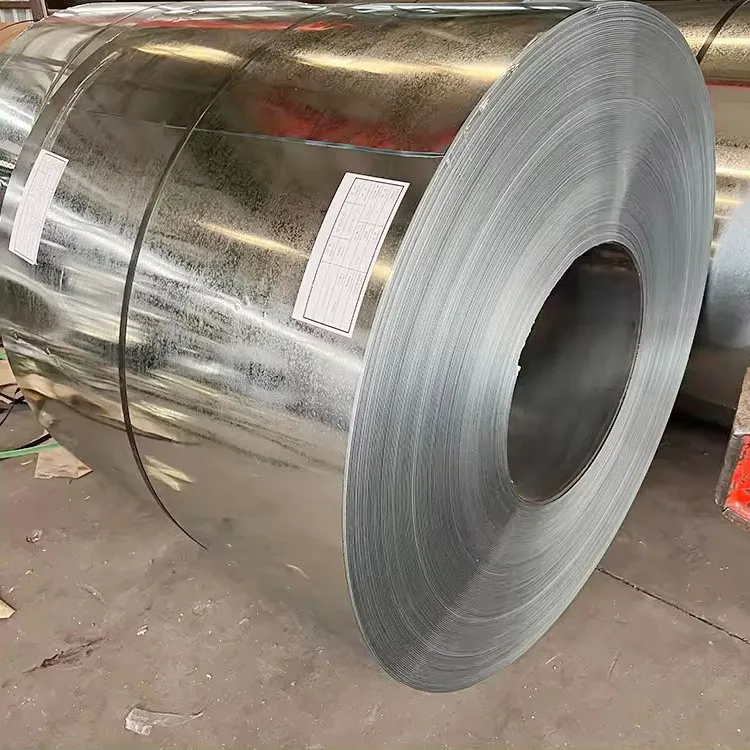

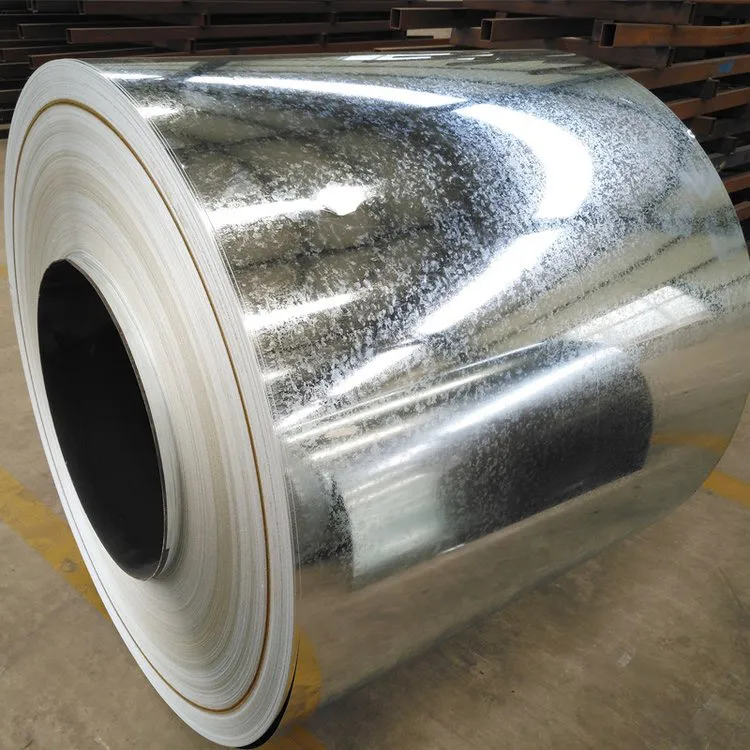

Galvanized Steel Coil

Galvanized steel coils are produced by passing cold-rolled steel sheets through a molten zinc bath. The zinc coating acts as a protective barrier between the steel and the environment, offering corrosion resistance and prolonging the material's durability.

keywords:

Product Categories

Galvanized Steel Coil

Email：

sales07@zgdtsteel.com

WhatsApp：

+8615315550509

Related Products

Message

The main advantages of its use

Excellent corrosion protection. This allows its use in industries where it is treated with chemicals or harmful products.
Hermetic separation against external atmospheric agents. Therefore, it can remain outdoors for a long time.
Greater durability and resistance of the sheet. In this way, investing in it always ends up being profitable through amortization.
Increase in hardness. Prevents impact chipping and chipping.
Aesthetic appearance and regular appearance. In this way, they do not require too many subsequent finishes after installation.

Product Parameters

Product Name	Galvanized Coil
Thickness	0.1mm-5.0mm
Width	12.7mm-2000mm
Coil inner	508mm/610mm
Surface	Large zinc flower, small zinc flower, no zinc flower
Zinc layer	30g-275g
Standard	GB,GOST,ASTM,AISI,JIS,BS,DIN,EN
Technology	Electrogalvanizing, Hot-dip galvanizing,Tinning
MOQ	25tons

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1 SGCD2	0.12 0.10	0.50 0.50	0.60 0.45	0.040 0.030	0.030 0.030	0.025 0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400 SGC440	0.25 0.25	0.50 0.50	1.70 2.00	0.200 0.200	0.035 0.035	0.150 0.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Application fields

Construction and Building Materials

One of the most significant applications of galvanized metal sheets is in the construction industry. Due to their corrosion resistance and strength, galvanized metal sheets are used in various structural components, roofing, siding, and cladding. The material is commonly found in commercial, industrial, and residential buildings, as it offers a cost-effective and long-lasting solution.

Roofing and Cladding: Galvanized sheets are often used for roofs and exterior cladding, as they provide reliable protection against water infiltration and weathering.
Structural Supports: Galvanized metal sheets are also used in making structural beams, columns, and supports for buildings, ensuring stability and strength over time.

Automotive Industry

Galvanized metal sheets are widely used in the automotive industry due to their durability and rust resistance. Automotive manufacturers use galvanized sheets for body panels, undercarriages, and various components that are exposed to road conditions, moisture, and other environmental factors.

Car Body Panels: Galvanized metal sheets are used to manufacture the outer panels of cars, including hoods, doors, and fenders, to prevent rust and corrosion.
Chassis and Underbody Parts: These sheets are commonly used in the undercarriage of vehicles to protect critical parts from damage due to moisture and debris exposure.

Agricultural Equipment

The agricultural sector benefits from galvanized metal sheets due to their ability to withstand harsh weather conditions and corrosive substances. These sheets are used in various farm equipment, machinery, and storage solutions, ensuring long-term durability and minimal maintenance requirements.

Storage Tanks and Silos: Galvanized metal sheets are used to manufacture large storage tanks for liquids such as water, fertilizers, and chemicals, as well as grain silos for food storage.
Farming Equipment: Tractor bodies, plows, and other farming tools are often made from galvanized metal sheets to provide strength and corrosion resistance in outdoor environments.

Home Appliances

In the home appliance industry, galvanized metal sheets are used in the manufacturing of various products such as refrigerators, washing machines, and dishwashers. Their resistance to moisture makes them ideal for appliances that operate in humid environments, like kitchens and laundry rooms.

Refrigerators and Freezers: The interior and exterior of refrigerators and freezers are often made from galvanized metal sheets to prevent rust and maintain structural integrity over time.
Dishwashers and Washing Machines: Galvanized metal is used in parts of dishwashers and washing machines, ensuring these appliances remain durable and functional for long periods.

Electrical and Utility Equipment

Galvanized metal sheets are frequently used in the manufacturing of electrical and utility equipment due to their ability to provide both structural strength and protection against environmental elements. From electrical enclosures to utility poles, galvanized sheets are essential for long-lasting, reliable performance.

Electrical Cabinets: Galvanized sheets are used to create electrical cabinets and enclosures that house sensitive electrical equipment, ensuring they are protected from corrosion and damage.
Utility Infrastructure: Galvanized metal sheets are used in utility infrastructure such as power poles, transmission towers, and electrical boxes, where they provide protection against the elements and extend the lifespan of the equipment.

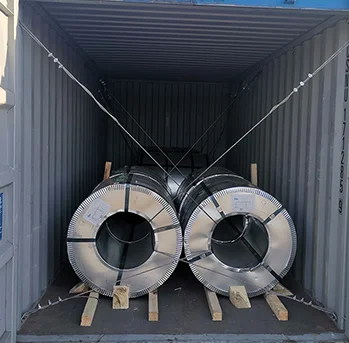

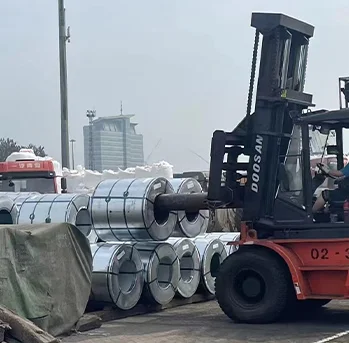

PACKING & SHIPPING
